Product Details:
|
| Keyword: | LED UV Curing Lamp | Power: | 900W |
|---|---|---|---|
| Input Voltage: | AC85-265V | Wave Length: | 395nm/365nm/405nm |
| Cooling Way: | Water Cooling With Compressor | UV Intensity: | 15W/CM2 |
| Warranty: | Two Years | Package: | Wooden Case |
| Highlight: | 265V Portable UV Curing Machine,1200W Portable UV Curing Machine,OEM UV Light Curing Equipment |
||

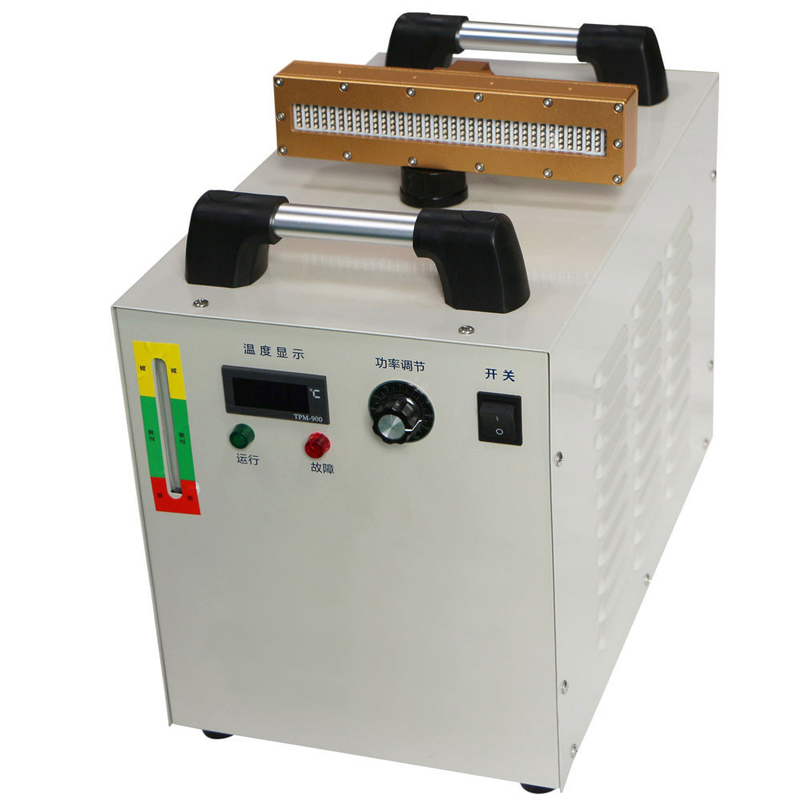

LED UV Curing Lamp 385nm 395nm 405nm 365nm Uv Led Curing Light Lamp
LED UV Curing Lamp Description
" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .
LED UV Curing Lamp Datasheet
|
Model
|
CG-20025-900A/C | lamp color |
Rose golden |
|
Power
|
900W |
Chip brand |
LG/Seoul |
|
Input voltage
|
AC85-265V |
Wave length |
365/385/395/405nm |
|
Cooling way
|
Water cooling |
Emitting window size |
customized |
|
UV intensity
|
15W/CM2 |
Dimmable |
Yes 0%-100% |
|
Best emitting distance
|
20-25mm is the best | Package | Caton |
LED UV Curing Lamp Advantages
LED UV Curing Lamp FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2:LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
Q8: The leduv curing system can be customized depend on special requirement ?
A8: Yes sure
