Product Details:
|
| Keyword: | Hand Held UV Lamp | Power: | 1000W |
|---|---|---|---|
| Input Voltage: | AC85-265V | Wave Length: | 280-405nm |
| Cooling Way: | Air Cooling | UV Type: | Mercury Lamp |
| Warranty: | 1years | Package: | Wooden Case |
| Highlight: | 1000W Handheld UV Curing Lamp,RoHS Handheld UV Curing Lamp |
||

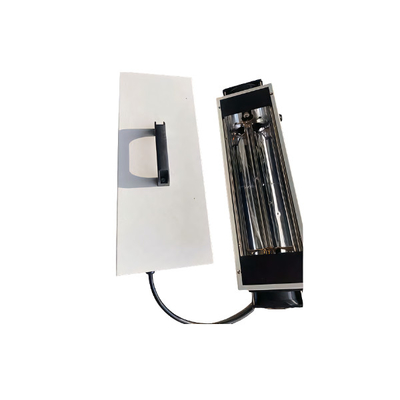

Hand Held UV Lamp UV Coating Curing Machine LED UV Lights Handheld UV Lamp
Hand Held UV Lamp Description
UV Mercury lamp is one kinds of ultraviolet ray radiation lamp to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .
Hand Held UV Lamp Datasheet
|
Model
|
CG-UV-400*100mm-1000W | lamp color |
White/black |
|
Power
|
1000W |
UV type |
Mercury lamp |
|
Input voltage
|
AC85-265V |
Wave length |
280-405nm |
|
Application
|
UV ink/vanish/coating /adhesive curing |
Life span |
800H |
|
Cooling way
|
Air cooling |
Emitting window size |
400*100mm |
|
Operation method
|
Hand-held |
UV intensity |
0%-100% dimmable |
|
Best emitting distance
|
30-50mm | Package | wooden case |
Hand Held UV Lamp FAQ:
Q1: What’s the wavelength of the uv lamp ?
A1: Usually 280-405nm ,the mainly peak wavelength is 365 nm.
Q2: What’s the material of lamp ?
A2: Quartz
Q3: What’s the cooling way for the leduv curing system ?
A3: Air cooling
Q4: The uv intensity can be change?
A4: Yes, the uv intensity is changeable from 0%-100%
Q5: What’s the max energy of uvled lamp ?
A5: It’s depend on emitting time , the longer the higher energy output total amount.
Q6: What’s the lifespan of the uvled curing lamp ?
A6: 500-800hours
