Product Details:
|
| Keyword: | UV Curing Chamber | Power: | 1000W |
|---|---|---|---|
| Input Voltage: | AC85-265V | Wave Length: | 365nm/395nm |
| Cooling Way: | Air Cooling | UV Intensity: | 2W/CM2 |
| Warranty: | 1years | Package: | Wooden Case |
| Highlight: | High Intensity UV Adhesive Curing Systems,VOC discharge UV Adhesive Curing Systems,2W/CM2 led uv curing machine |
||

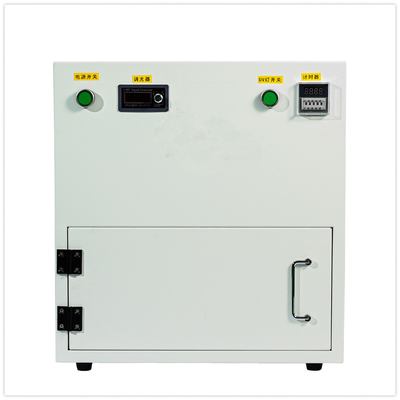

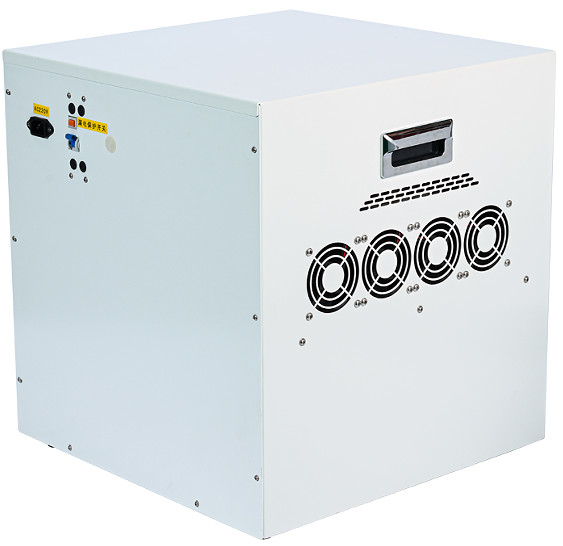

High Intensity UV Adhesive Curing Systems LED Uv Curing Equipment
UV Curing Chamber Description
" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .
UV Curing Chamber Datasheet
|
Model
|
CG-CHX-300*300mm -1000A/C | lamp color |
White/black |
|
Power
|
1000W |
Chip brand |
LG/Seoul |
|
Input voltage
|
AC85-265V |
Wave length |
365/385/395/405nm |
|
Application
|
UV ink/vanish/coating /adhesive curing |
Life span |
20000H |
|
Cooling way
|
Air cooling |
Emitting window size |
300*300mm |
|
UV intensity
|
2W/CM2 |
Dimmable |
0%-100% |
|
Best emitting distance
|
30-50mm | Package | wooden case |
UV Curing Chamber Advantages
UV Curing Chamber FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2:LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
