Product Details:
|
| Keyword: | UV LED Curing Equipment | Power: | 3000W |
|---|---|---|---|
| Input Voltage: | AC85-265V | Wave Length: | 365nm |
| Cooling Way: | Water Cooling | UV Intensity: | 18W/CM2 |
| Warranty: | 2 Years | Package: | Wooden Case |
| Highlight: | LED UV Curing System 5000W,CE LED UV Curing System,18W/CM2 UV LED Curing System |
||

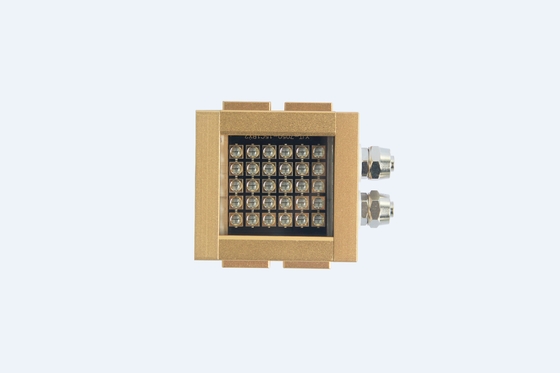

18W/CM2 LED UV Curing System 365nm High Power 5000W Water Cooling

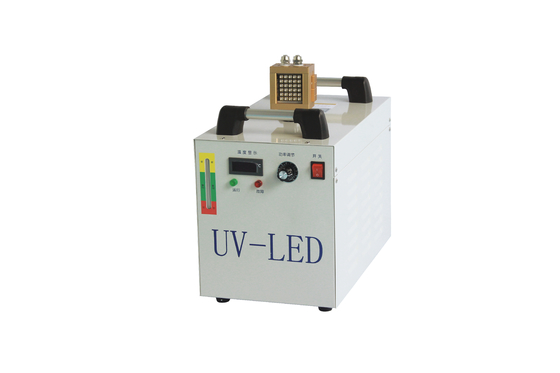

UV LED Curing Equipment Description
" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .
In recent years, conventional mercury arc lamps have proven to have some disadvantages, especially for the environment. They produce ozone and require exhaust systems to help keep the air from becoming polluted. These UV curing systems also require a lot of energy to operate and generate a lot of heat. As mentioned earlier, they also involve the use of mercury with long-term environmental impacts.
UV LED curing offers all the benefits of traditional curing while also offering a solution to negative environmental impacts. This new technology reduces heat radiation and provides instant switching. UV LED curing also requires no moving parts. All of this helps reduce the amount of energy required.
UV LED Curing Equipment Datasheet
|
Model
|
CG-CT3-130045-3000C | lamp color |
Rose golden |
|
Power
|
3000W |
Chip brand |
LG/Seoul |
|
Input voltage
|
AC85-265V |
Wave length |
365/385/395/405nm |
|
Application
|
UV ink/vanish/coating /adhesive curing |
Life span |
20000H |
|
Cooling way
|
Water cooling |
Emitting window size |
customized |
|
UV intensity
|
18W/CM2 | Dimmable | 0%-100% |
|
Best emitting distance
|
30-50mm | Package | wooden case |
UV LED Curing Equipment Advantages
UV LED Curing Equipment FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2:LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
